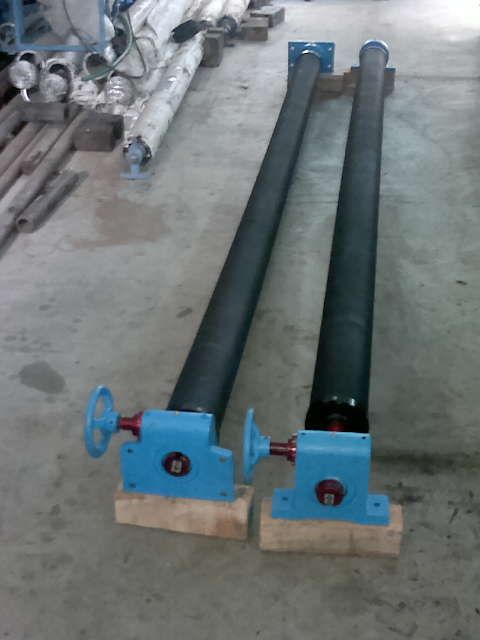

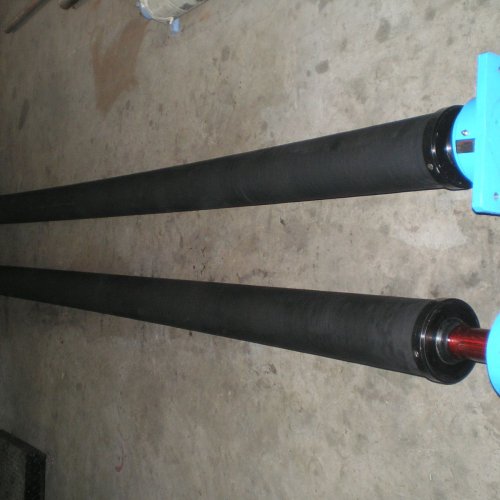

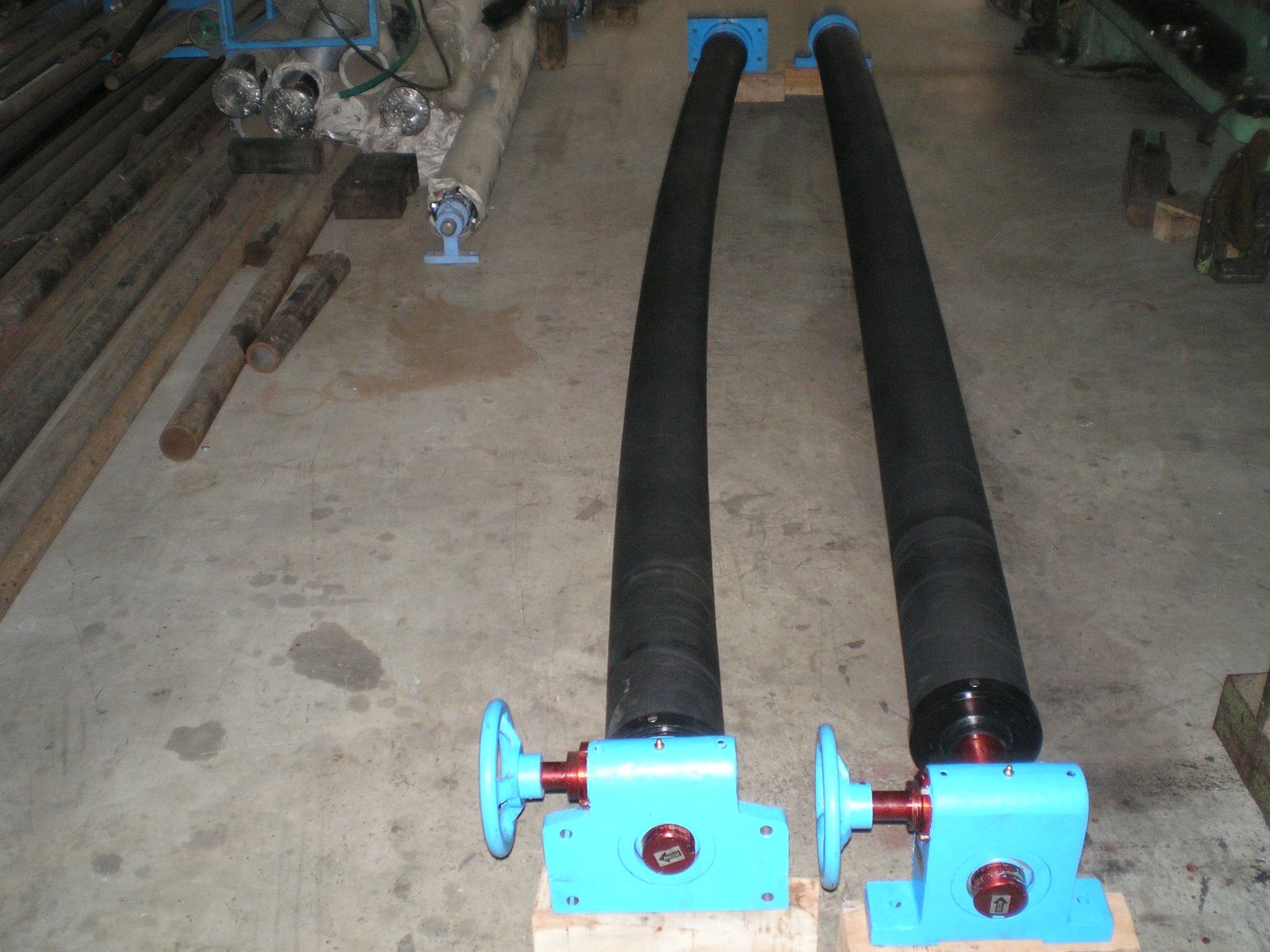

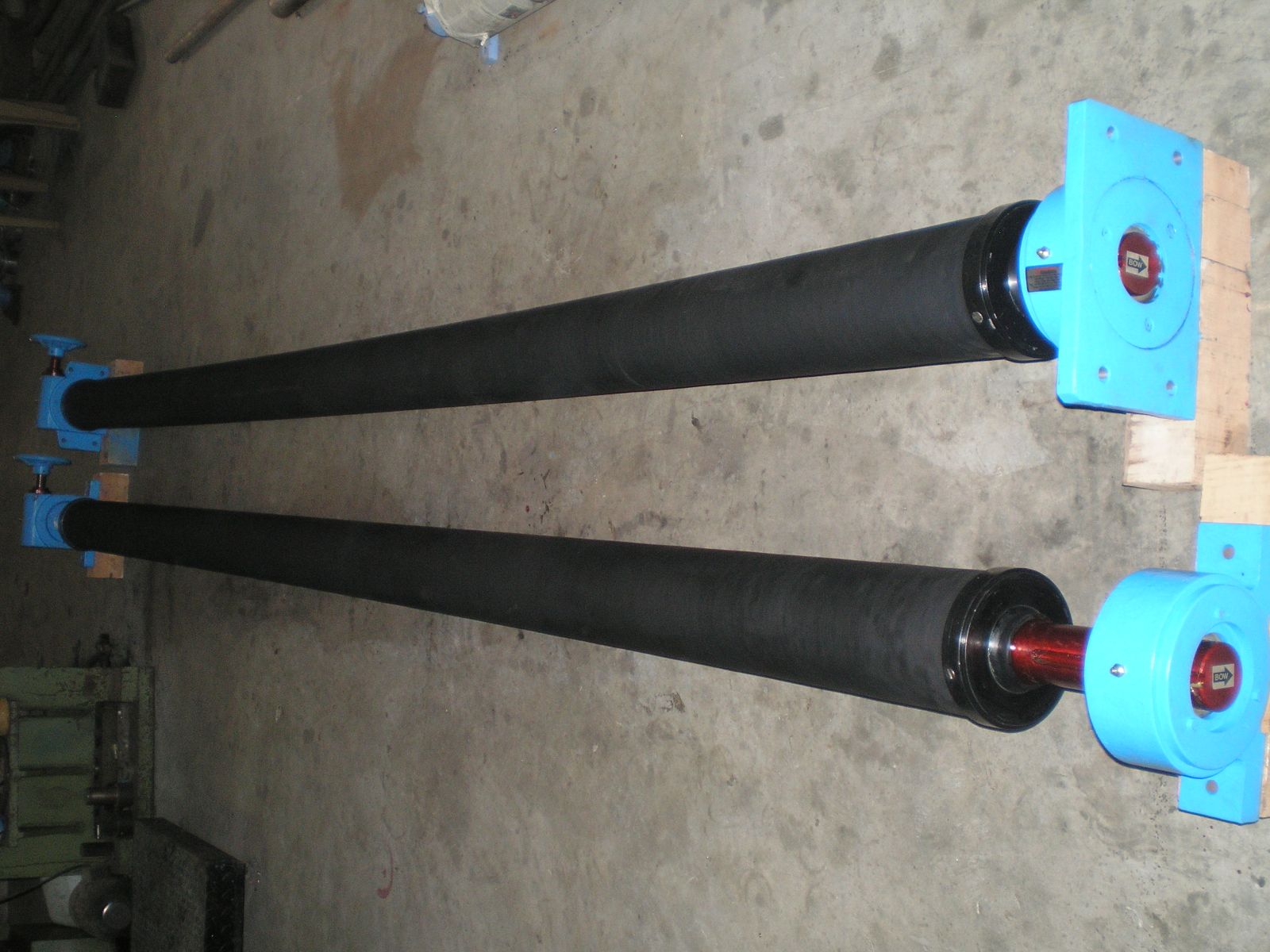

Jointed Axle Bow Roller


Jointed Axle Bow Roller

The Jointed Axle Bow Roller offered by us has garnered appreciation for its compact design, efficient operation and requirement of less maintenance. Customers can contact us for delivering any order of the Roller within promised time.

More about Jointed Axle Bow Roller :

  • Tire Cord-aligner is centralizing device specially developed for tire-cord machines like Liner Re-Winder, Calendars, Dipping Plant, Let-off and Wind-up Stations.
  • Double Axle Bow Roll / Jointed Axle Bow roller is widely used in Tyre Industry.
  • The unit consists of two numbers jointed axle bowed Rolls light duty or heavy duty as per application/fabric tension. Both sides of fabric edges are sensed by sensors and take correction as required by jointed axle bow rolls which works independently on both sides by the sensing given by each side sensor. These Double Axle bow rolls are available with hexagonal shaft 1-1/4” square bar for roll diameter 110mm or with 75mm shaft diameter and Roll diameter 160mm for heavy duty applications.
  • We bring forth a range of Double axle rubber bow rolls that are designed for wrinkle removing of tire-cord fabrics. These rolls are manufactured using best quality raw material and as per international industrial standards. Our range is widely appreciated owing to their features of high strength, durability and resistance to chemical, abrasion and temperature. Further, we provide our range in different specifications and at most affordable prices
