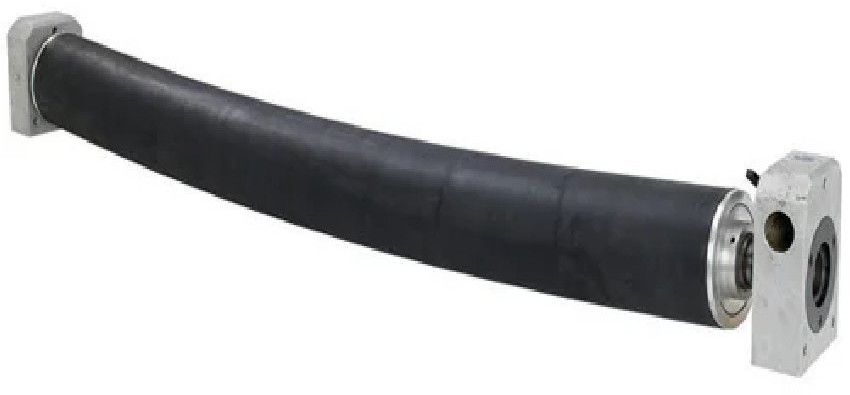

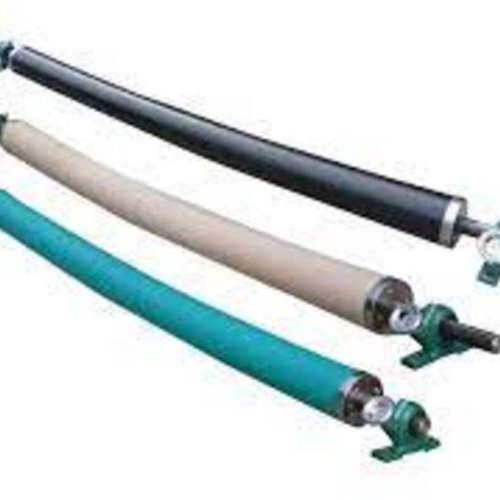

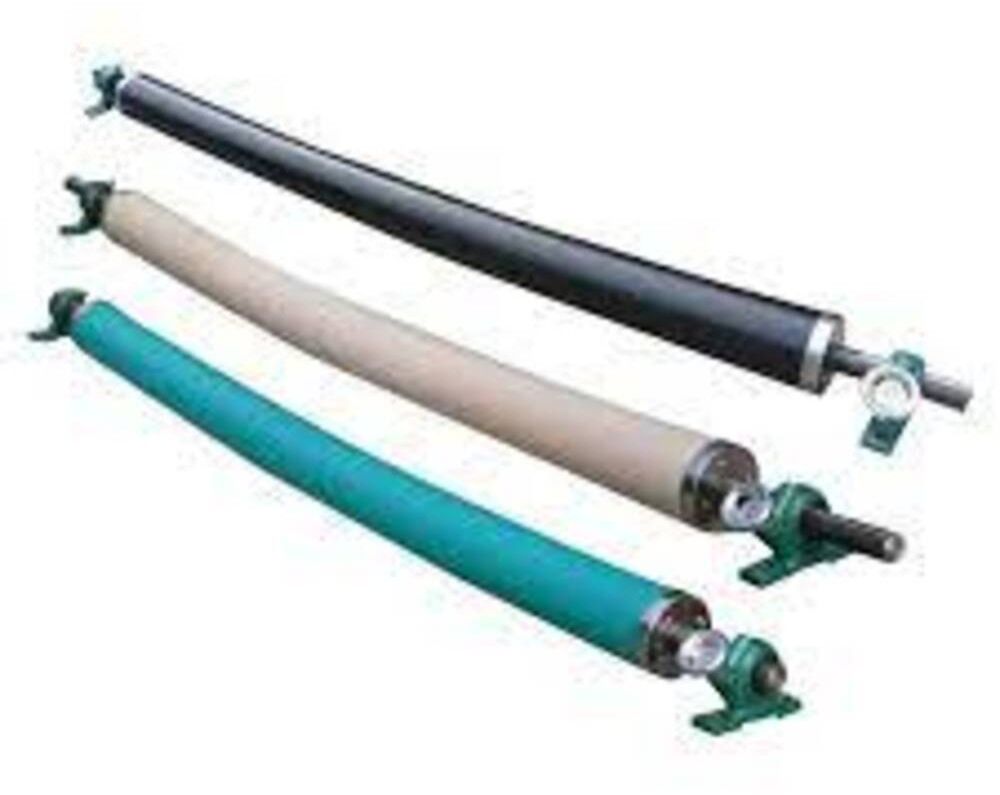

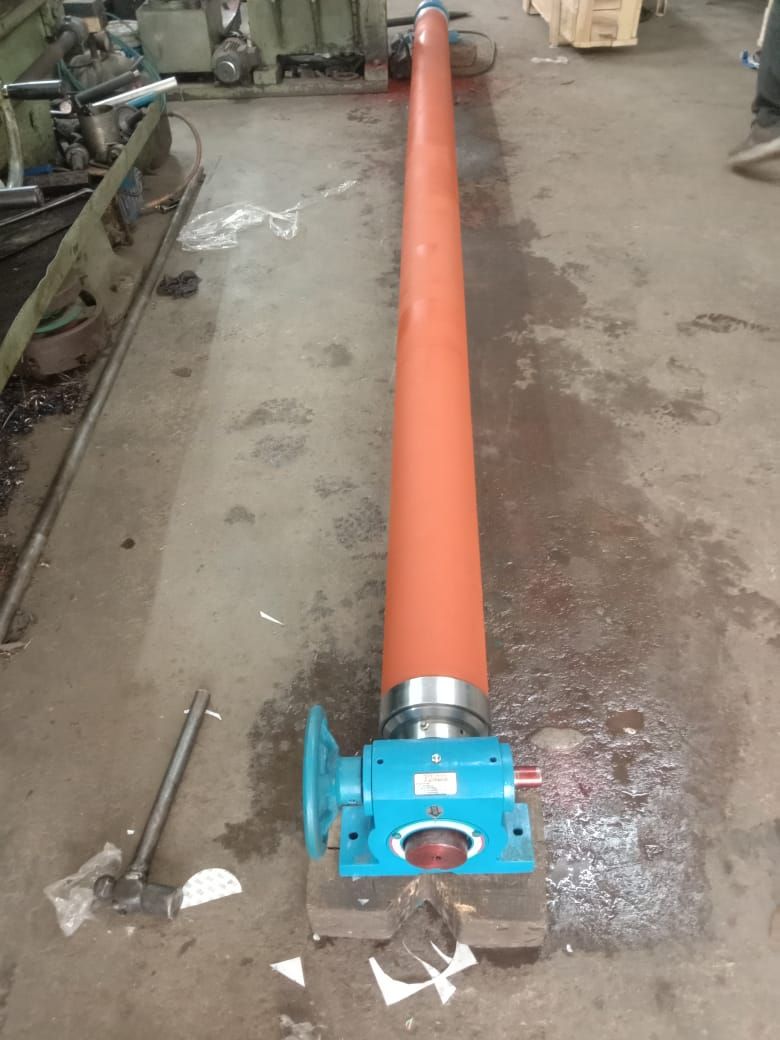

Curve Bar Expander Roller


Image 01 Image 02

We are instrumental in offering Curve Bar Expander Roller to our buyers throughout the world. We offer the Curve Bar Expander Roller in various modes to cater to variegated demands of the customer.



Details :

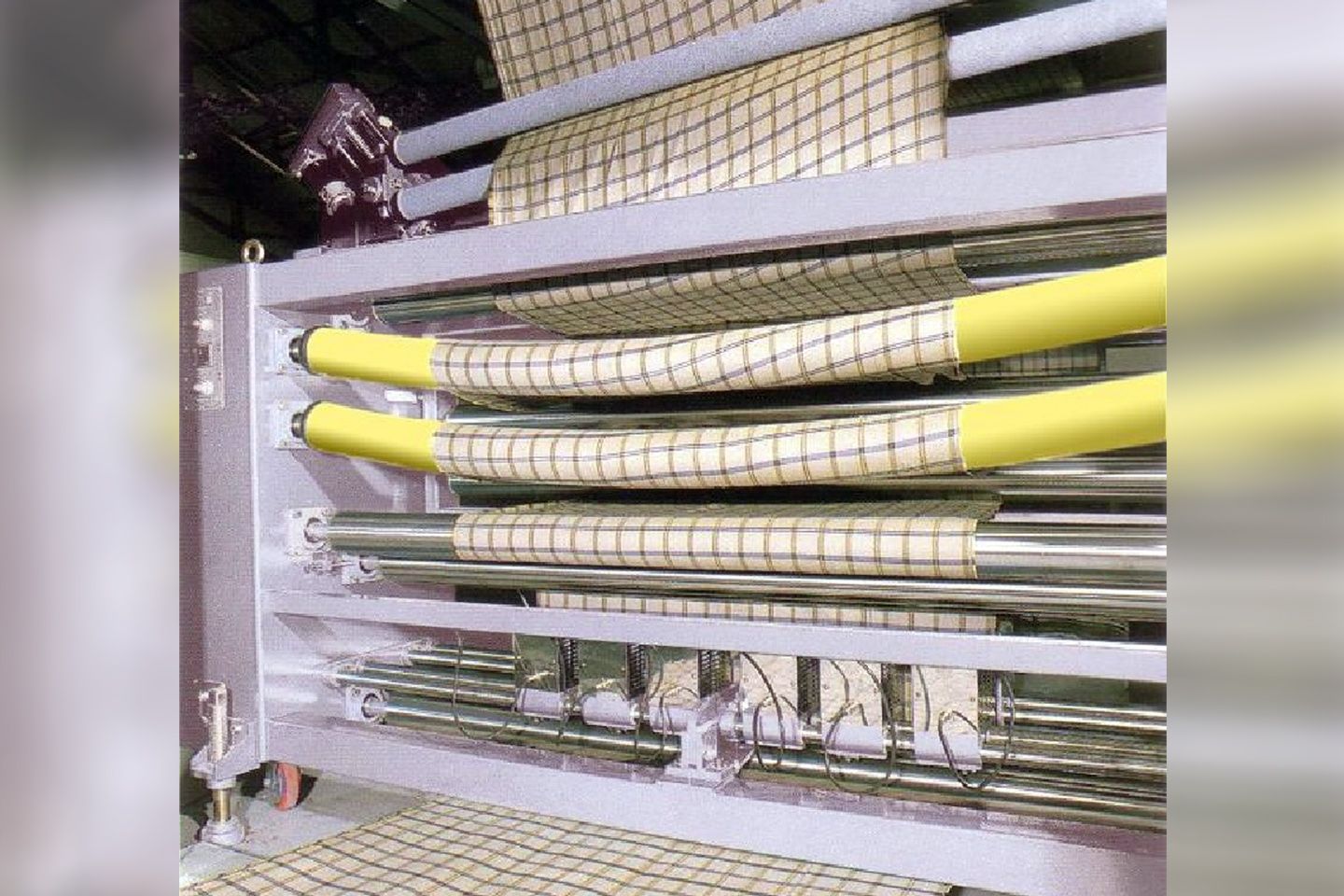

  • Rubber Curve bar expander roll is used for removing wrinkles from Textile Processing machines like Calendars, Dyeing, Bleaching machines, Ranges, Stenters, Bow weft straightner. Curve bar expander used on textile machines having more bow than other Industries like Paper, plastic. Nitril, Hypolan, rubber sleeves are used for abrasion resistance, chemical resistance, high temperature resistance. Special sealings are provided for wet working condition to avoid rusting of ball bearings inside the roll.
  • This is one of the most effective devices for removing crease-wrinkles, which is normally fitted on the chainless mercerize machine. With this device, we get maximum fabric surface contact area on all the three curved bars which ensures effective removal of crease / wrinkle.
  • Metal is used for high-speed Paper slitter re-winders for wrinkle removing and after slitting to separate slits. For these type of Rolls having heavy weights, only paper tension itself is not sufficient to drive the Roll. Hence extra pulley is provided to drive the metal Expander Roll.
